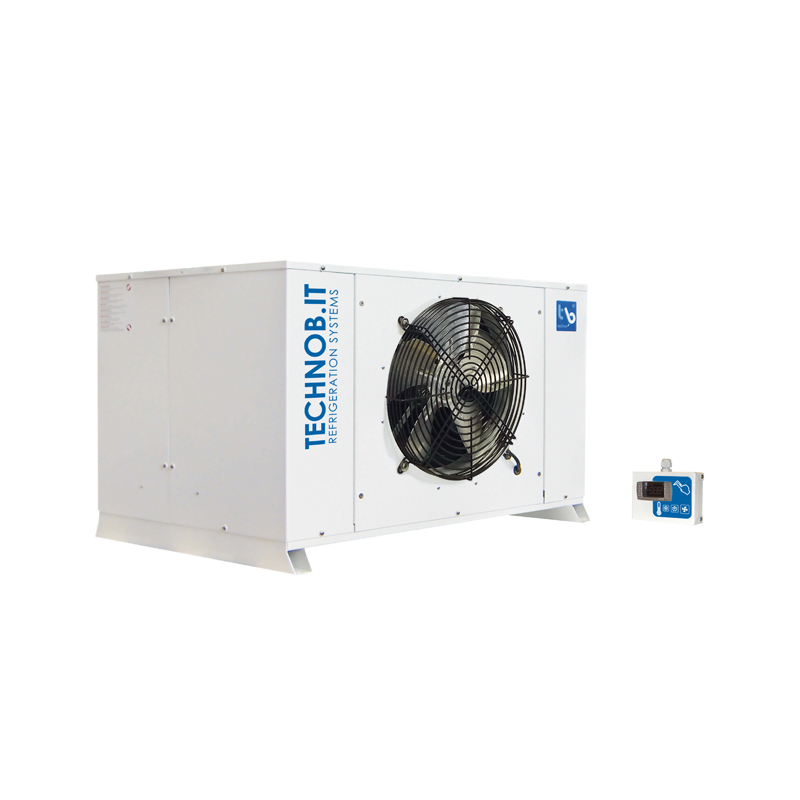

Remote Split Freezer BHTZ300 Monoblock Unit 28.94 m³

Remote Split Freezer  BHTZ300 Monoblock Unit 28.94 m³

Description:

Unit Model: BHTZ300

  • Electronic control panel.
  • Expansion device with thermal expansion valve.
  • Solid core filter on liquid line.
  • Pre-arrangement for room lighting connection and for door switch connection.
  • Cable for door heater connection on all low temperature units.
  • All the models are equipped with a fixed calibration low pressure switch; all three-phase units and the model BHTX122 are also equipped with a fixed calibration high pressure switch, in accordance with the “Pressure Equipment Directive” 97/23/EC. Anyway, on request the high pressure switch could be supplied also on units with voltage 230/1/50Hz.
  • All the units are supplied with a remote control panel already connected to the unit through a 5 m long cable (on request we could supply different lengths up to 20 m).
  • Direct drainage of condensate.
  • Drain heater.
  • Condensing unit installation on the external floor of the cold room as well as evaporator installation on the ceiling inside the cold room.
  • Sight glass.
  • All units are supplied with a liquid receiver, in accordance with the “Pressure Equipment Directive” 97/23/EC.
  • Connection pipes couplings between condensing unit and evaporator have been realized without shut-off valves or weld neck flanges.
  • Units suitable for external installation. Units recommended for use at ambient temperatures higher than 10°C. If units are mounted in Ambient temperature lower than 10°C, some accessories are needed.


Technical Data :

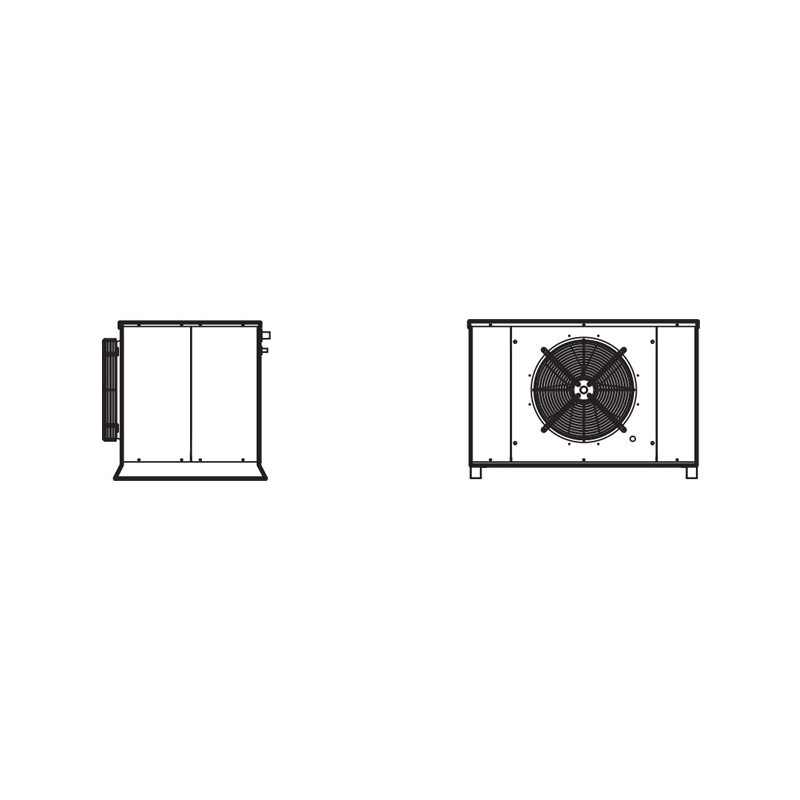

Condenser:

  • Form: 2C2
  • Fin pitch: 2,1
  • Fans: 1x350
  • Fan absorption: 1x140
  • Airflow: 2600

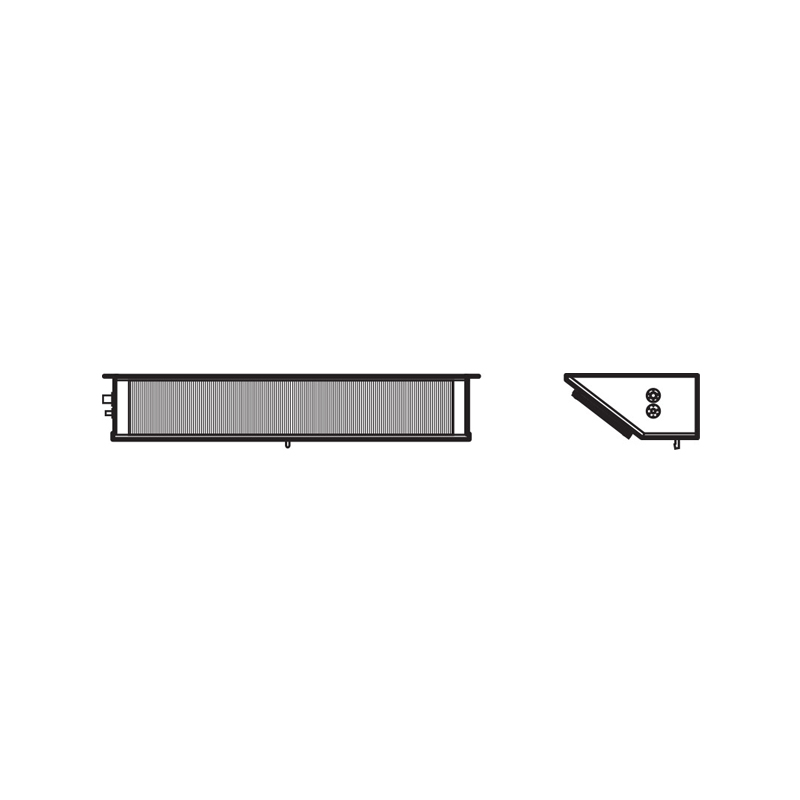

Evaporator:

  • Form: EVS3X254
  • Fin pitch: 4,2/8,4
  • Fans: 3x254
  • Fan absorption: 3x73
  • Airflow: 2350
  • Air-throw: 6


Refrigerating (W) - Room volume (m³)

Cold room temperature: - 18 °C

Ambient temperature: + 25°C

  • W: 2752
  • m³: 38,06

Ambient temperature: + 32°C

  • W: 2468
  • m³: 28,94

Ambient temperature: + 43°C

  • W: 2007
  • m³: 16,69

Cold room temperature- 22 °C

Ambient temperature: + 25°C

  • W: 2336
  • m³: 29,61

Ambient temperature: + 32°C

  • W: 2081
  • m³: 22,25

Ambient temperature: + 43°C

  • W: 1667
  • m³: 11,43

Cold room temperature: - 25 °C

Ambient temperature: + 25°C

  • W: 1996
  • m³: 23,51

Ambient temperature: + 32°C

  • W: 1785
  • m³: 17,72

Ambient temperature: + 43°C

  • W: 1435
  • m³: 9,06
