Remote Split Freezer BHTZ202 Monoblock Unit Cubic Capacity: 10.94

Remote Split Freezer  BHTZ202 Monoblock Unit Cubic Capacity: 10.94

Description:

Unit Model: BHTZ202

  • Electronic control panel.
  • Expansion device with thermal expansion valve.
  • Solid core filter on liquid line.
  • Pre-arrangement for room lighting connection and for door switch connection.
  • Cable for door heater connection on all low temperature units.
  • All the models are equipped with a fixed calibration low pressure switch; all three-phase units and the model BHTX122 are also equipped with a fixed calibration high pressure switch, in accordance with the “Pressure Equipment Directive” 97/23/EC. Anyway, on request the high pressure switch could be supplied also on units with voltage 230/1/50Hz.

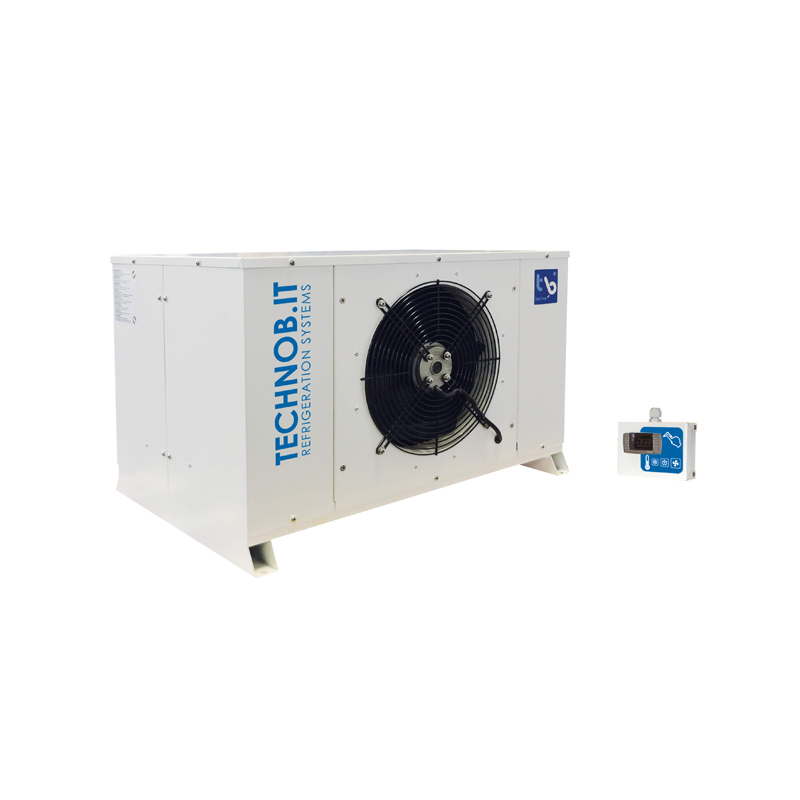

  • All the units are supplied with a remote control panel already connected to the unit through a 5 m long cable (on request we could supply different lengths up to 20 m).
  • Direct drainage of condensate.
  • Drain heater.

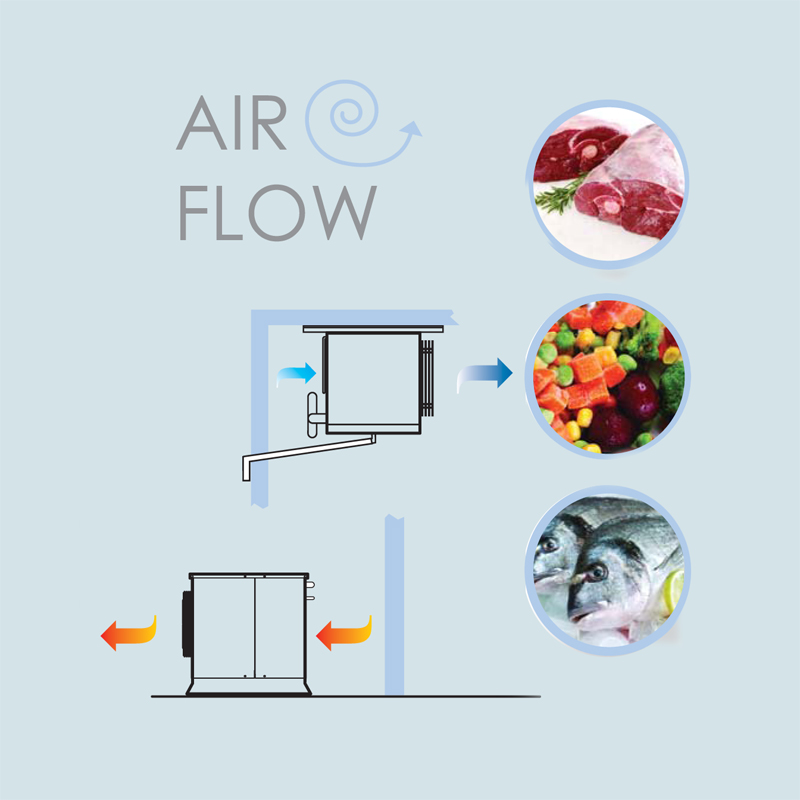

  • Condensing unit installation on the external floor of the cold room as well as evaporator installation on the ceiling inside the cold room.
  • Sight glass.
  • All units are supplied with a liquid receiver, in accordance with the “Pressure Equipment Directive” 97/23/EC.
  • Connection pipes couplings between condensing unit and evaporator have been realized without shut-off valves or weld neck flanges.
  • Units suitable for external installation. Units recommended for use at ambient temperatures higher than 10°C. If units are mounted in Ambient temperature lower than 10°C, some accessories are needed.


Technical Data :

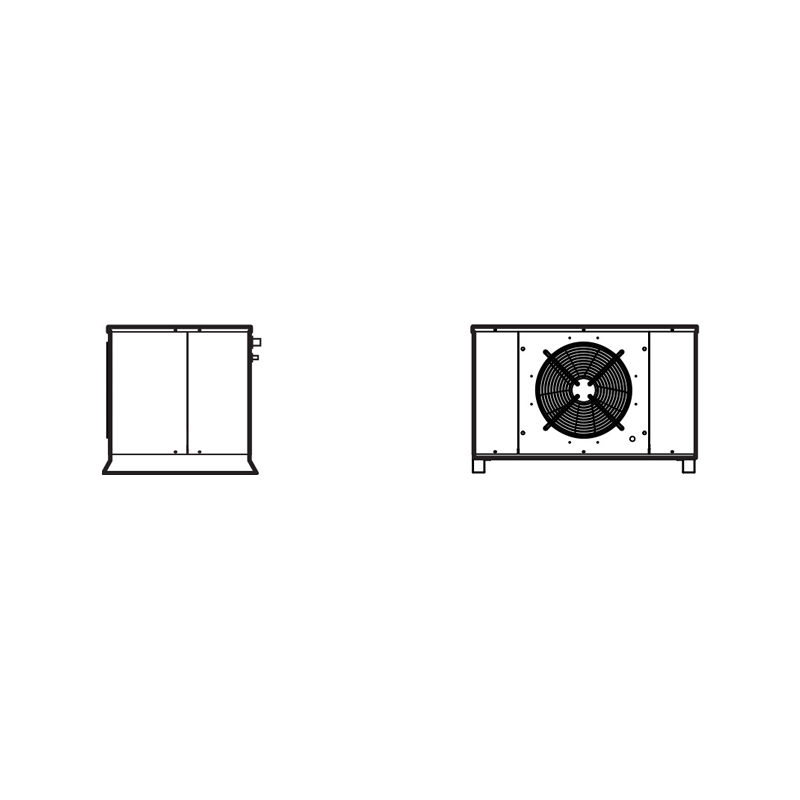

Condenser:

  • Form: 1C3
  • Fin pitch: 2,1
  • Fans: 1x300
  • Fan absorption: 1x110
  • Airflow: 1460

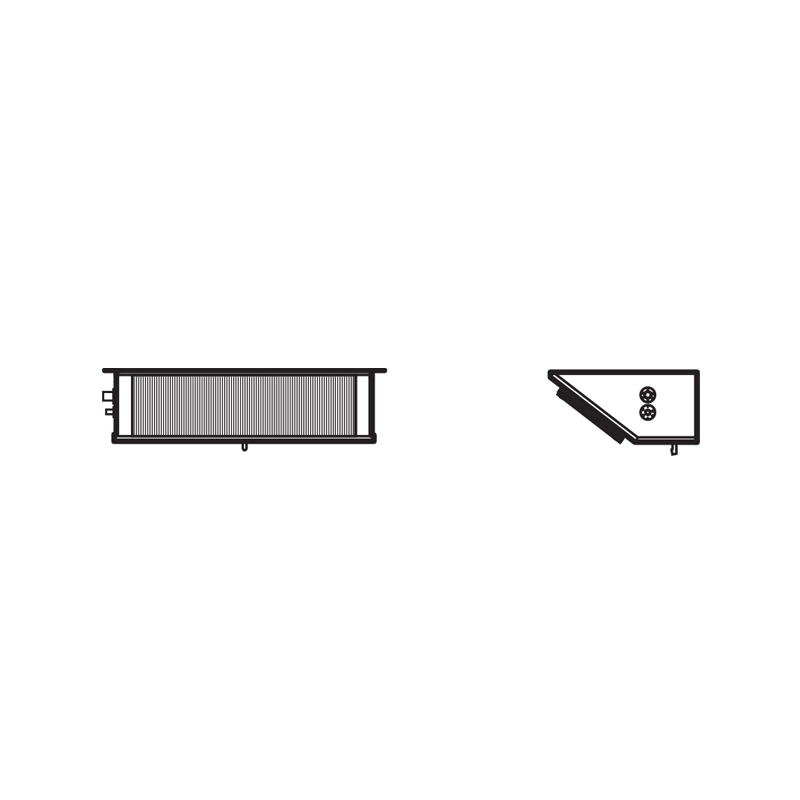

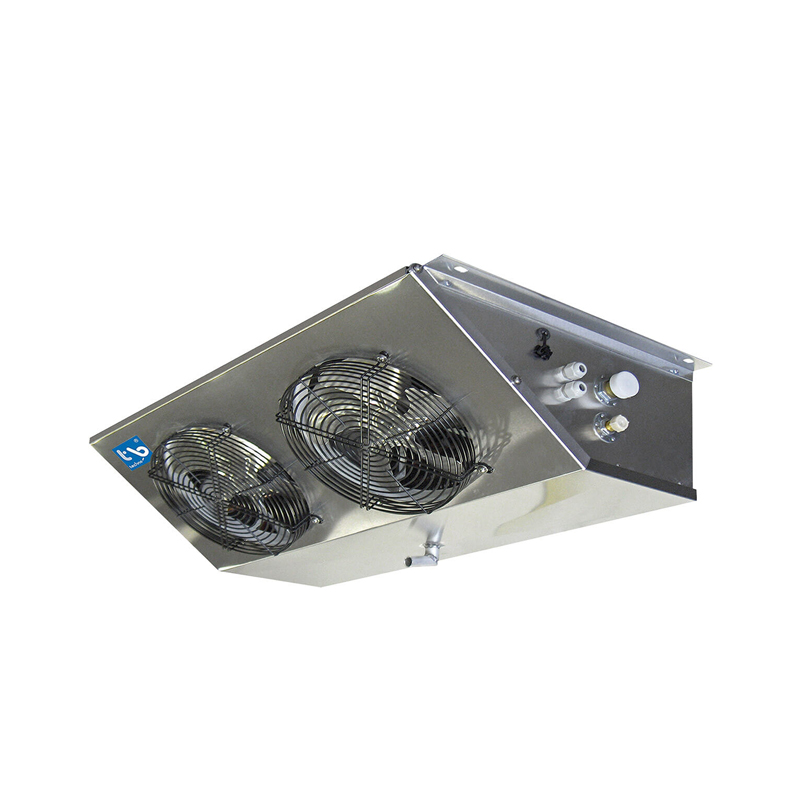

Evaporator:

  • Form: EVS2X254
  • Fin pitch: 4,2/8,4
  • Fans: 2x254
  • Fan absorption: 2x73
  • Airflow: 1590
  • Air-throw: 6


Refrigerating capacity (W) - Room volume (m³)

Cold room temperature: - 18 °C

Ambient temperature: + 25°C

  • W: 1883
  • m³: 24,59

Ambient temperature: + 32°C

  • W: 1646
  • m³: 16,07

Ambient temperature: + 43°C

  • W: 1276
  • m³: 6,09

Cold room temperature: -22 °C

Ambient temperature: + 25°C

  • W: 1588
  • m³: 16,83

Ambient temperature: + 32°C

  • W: 1378
  • m³: 10,94

Ambient temperature: + 43°C

  • W: 1050
  • m³: 4,04

Cold room temperature: - 25 °C

Ambient temperature: + 25°C

  • W: 1377
  • m³: 12,34

Ambient temperature: + 32°C

  • W: 1181
  • m³: 7,92

Ambient temperature: + 43°C

  • W: 877
  • m³: 2,81
